Farmall H

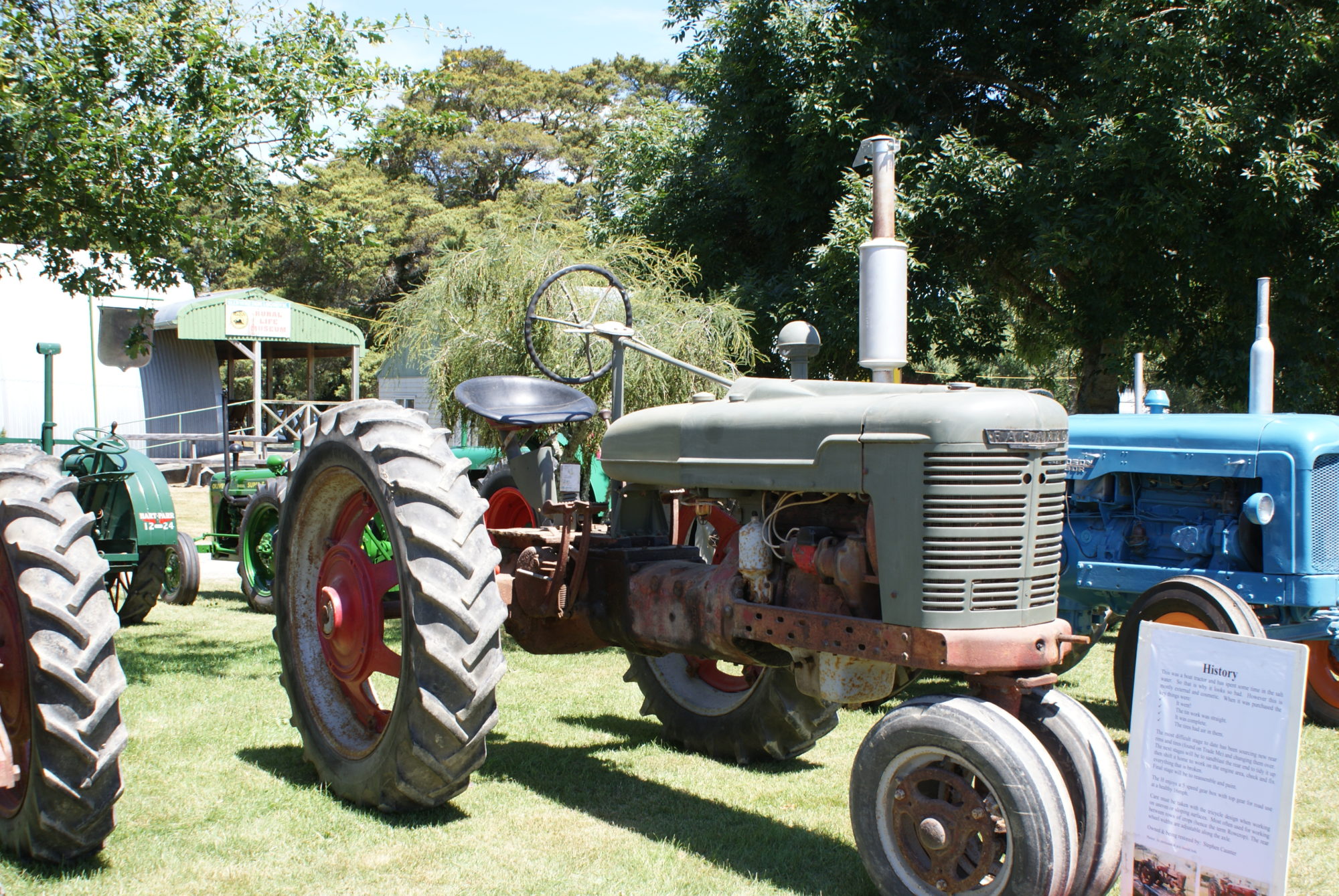

Farmall H, running but a work in progress

This is where the restoration starts!!
This farmall H was a boat tractor and has spent some time in the salt water.
When it was purchased what were the key points?

It went!

The tin work was straight.
It was complete.
The tires had air in them.

The most difficult part will be dealing with the rear tires and the foot plate area where rust is taking over.
The next stages will be to slowly but surely starting from the front
and work towards the back, cleaning and fixing were necessary.
Repaint and reassemble.

McCormick
Farmall H

Year of Manufacture: 1945
Serial No: FBH 194539

Technical Specifications:

Cylinders: 4
Bore & Stroke: 3 3/8 x 4 1/4 inches
Displacement 152 cubic inches
Compression Ratio: 5.9:1
Horsepower
Drawbar: 25.5
PTO/Belt: 27.9
RPM: 1650
Weight: 3725 pounds
Number produced: 390317 1939 to 1953

Road speed:
Tyre size 10×38
1st:      2 5/8 mph
2nd:    3.0 mph
3rd:    4 1/4 mph
4th: 5 3/8 mph
5th:     15 5/8 mph
Rev: 3.0 mph

1940 US$695 No PTO or Belt Pully Steel wheels
US$855 Rubber Tyres PTO Belt Pully
